Making A Leg Tapering Jig

The tapering jig I have used in the past stayed with the shop when I retired and since this is such a handy jig I need to make a new one. I am going to make some changes in the design this time around.

The "old" tapering jig

I want to use thicker plywood for the base this time. The old base started flexing after a few years of use. I think this is due to the base thickness but also due to the pressure applied by the hold down arm to the base. I will use a De Staco clamp attached to the fence for the hold down and will try to spread the pressure on the base over a wider area. I want to make it easy to adjust so I am also going to use T track and nuts for the fence adjustment.

Here is the drawing I have made to help put this jig together

I am making it long enough to hold a 36" piece and am making the fence adjustable to accommodate wide stock. The clamp will have to have different base heights to accommodate thicker pieces of stock. The current configuration should cover the most common sizes for me.

Thanks for taking a look. I'll get to work putting this together soon so check back and see how it's going.

Finishing Up A Table

This project started with a few nice pieces of ash. I had the material left over from a past project and had been looking at the pretty quarter sawn grain that could come from them. These pieces were about 4" X 6" X 36" long. By re sawing I could come up with quarter sawn material for the top and apron, and rift sawn material for the legs. I started designing a small table with drawers several years ago to be made from this ash. I finally started building this table a year or more ago. I made the top but was still making design decisions about the legs and placement of drawers. Other things came up and needed doing so I never got farther than blanking out the material for legs, apron and frame parts. Well, the time to finish that project has come.

The top has already been finished with 3 coats of Tried and True Varnish Oil followed by 3 coats of wax.

The other material has been stickered on the lumber rack rack waiting for me to get back to it.

Here is a basic drawing of the table.

I decided to make the legs with a double taper, a design I have used before and like. I will also have a drawer in each of the narrow ends of the table. Since the drawers will be full height the stretchers will  be concealed behind the drawer front. The joinery at the top of the leg is shown in plan view in the drawing below.

Well, I'll be getting started on this table soon, but I need to make a leg tapering jig first. More about that next time. Thanks for taking a look and leave a comment if you want to. I like to think people are reading this but it would be nice to have some verification!

A visit To The Mint Museum, Charlotte, North Carolina

Detail of Salmon carving, Mint Museum.

While in Charlotte, North Carolina, I had the opportunity to visit the Mint Museum at the downtown location. This museum houses a nice collection of American and Contemporary Art as well as a collection of Craft and Design pieces.

I found the craft collection to be very enjoyable as well as informative.

There were several turned bowls and vases, some segmented, displaying superb craftsmanship and detail.

I was pleasantly surprised to see some work by several furniture makers I had read about in the past. There was a piece by Gary Knox Bennett and a work by Silas Kopf. The interior of the museum was a bit dim so I didn't make a picture of the Bennett piece but was able to make a pic of the Kopf piece.

It took 2 shots to get the whole scene. Silas Kopf is a master of Marquetry. More of his work can be seen on his website Silas Kopf Woodworking.

Besides the collection of contemporary work there was also a collection of historical pieces which I found fascinating and frustrating. A lot of what I wanted to see was interiors of cabinets and drawers etc. and the pieces were not displayed to provide that kind of view. Here are a few pieces they had on display.

 I did make one shot of the underside of a chest but was quickly told that I was too close to the work and had to back off. You can see some of the construction details though.

All in all I had an enjoyable few hours looking at the furniture and wooden objects. I recommend going to as many museums as you can, whether you are traveling or are at home, there are always opportunities to see others work and to be inspired and informed by the experience.

Lumber From North Carolina

Here are some pictures of the lumber I picked up in North Carolina.

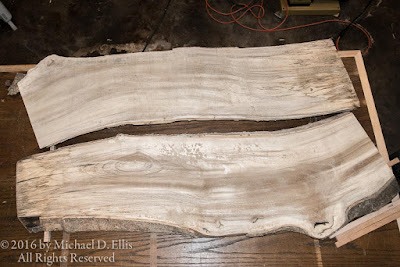

This is Hackberry, the spalted piece. It may become a table but at this point I am not sure. It really needs to acclimate for a while yet. I'll move the hackberry to the basement soon.

And here are the 2 pieces of Hackberry I bought so I would have wood for legs or apron or both, depending on what the piece becomes.

And here is a shot of the Pecan boards that my friend Jeff gave me. These boards are 8 feet+ in length so I didn't include the whole of the pieces.

The Pecan rode on my ladder rack the whole trip back to Oregon. The Hackberry was in the bed of the truck covered by a canopy. The pecan seems to have come through without any problems despite being rained and snowed on. The Hackberry didn't like moving and has developed some big checks in the ends. I kind of expected this but hope the spalted slab will yield a nice size piece. It will be a while before I work on that though.

Well, that's it for today. Thanks for taking a look and I'll be back to making some stuff soon.

A Visit To A Small Sawmill In North Carolina

While I was in North Carolina to attend a wedding I kept trying to find someone with knowledge of what all the tree species I was seeing were. The forests in Appalachia contain a large number of trees I could only vaguely recognize and they are for the most part deciduous. These forests are very different from the conifer forests I grew up around in the Pacific Northwest. I did finally meet someone who said he did know the trees because he had a sawmill. Well, this piqued my curiosity and we began talking. Soon Jeff had invited me out to his farm to see the mill he was restoring and to pick up some boards that he had previously milled and had stored in his barn. Well, OK. This is exactly what I was hoping to stumble across so we exchanged contact info and made a tentative plan to meet up later in the week.

A couple of days later, after some navigation issues and a phone call or two, I arrived at Jeff's farm and we immediately set out for a local sawmill, Ritchie Farms and Sawmill,  Mt. Pleasant, North Carolina, operated by Mr. Don Ritchie. Jeff needed to pick up some pine 1X material and I was eager to see what hardwood material he might have. Here is Don's mill set up. He has a nice wood miser mill. In this photo, Don is on the right and Jeff is on the left.

Jeff loaded up the lumber he needed and then Don started opening up various sheds and containers to let me take a look at the material he had available.  There was a lot of tempting stuff. Walnut and Cherry is much less expensive on the East Coast!

I really couldn't fill my truck up. I still had a long drive back to Oregon and didn't want to add too much weight but I did find a slab of spalted Hackberry that seemed unique and not available out west. I also bought a few other pieces of Hackberry so I had material to make legs and/or aprons from.

Don totaled up my purchase and I paid him and left with what I hope will be some special lumber to make a special piece of furniture from. Jeff and I went back to the farm where he showed me the wood miser sawmill he has been restoring. It should cut a lot of wood when he gets it finished. Jeff also gave me 4 nice boards of Pecan which he had milled up. All in all, I had a great day out in the North Carolina countryside visiting with folks who appreciate lumber! The return trip to Oregon was a little hard on the Hackberry slabs. I went from low to high humidity several times and the temp ranged from 80 degrees F. to around 10 degrees F. Some checks have opened up on the ends and I will put this stuff aside for maybe up to a year or more until it looks like it has stabilized. On the other hand, the Pecan came through really well even though it was up on the ladder rack the whole trip home getting rained and snowed on.

I'm still getting settled after returning home and haven't spent much time in the shop yet. It will probably be another week before I get back to all the projects I am working on. Well, you'll hear about those pretty soon so keep checking in. Thanks for taking a look.

Back to Blogging

Well, I'm back after a long trip across the Continental United States. I put a lot of miles on my truck and visited many unique spots in this country I live in. I even saw a few things that woodworkers would be interested in. Check back next Tuesday as I attempt to maintain a regular schedule of posting on Tuesdays and Thursdays, for a while anyway.
Thanks for taking a look.
Michael
